Present Card Screen

Usage

The present card screen is used when the terminal is requesting a card.

Restricted

This screen is part of Payter's certification and is subject to specific rules. Please discuss any changes in advance otherwise approval of the amended screen may not be possible.

Element Name	Type	Format	Default Value
title	label	String	Set by Terminal
subtitle	label	String	Set by Terminal
background	image	String	Set by Terminal
logo	image	String	Set by Terminal
cancel	button	N/A	Set by Terminal
cancel-text	label	String	Set by Terminal
custom	button	N/A	Set by Terminal
custom-text	label	String	Set by Terminal
qr	button	N/A	Set by Terminal
qr-icon	image	String	Set by Terminal
qr-left	qr	String	Set by Terminal
qr-right	qr	String	Set by Terminal
ct	image	String	Set by Terminal
cl	image	String	Set by Terminal
cug	image	String	Set by Terminal

Screen Outline

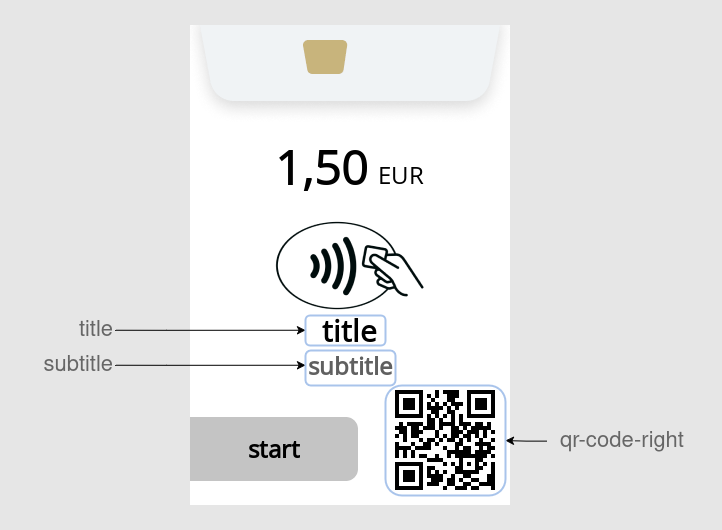

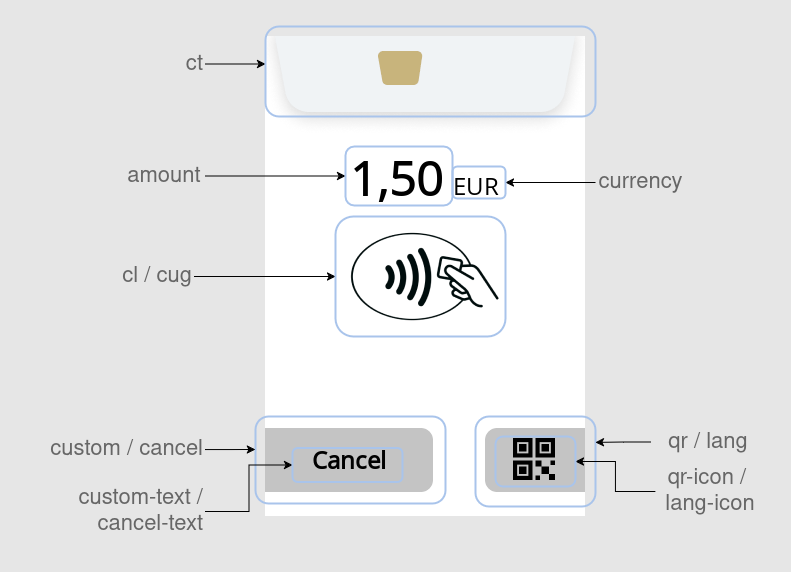

Apollo Max

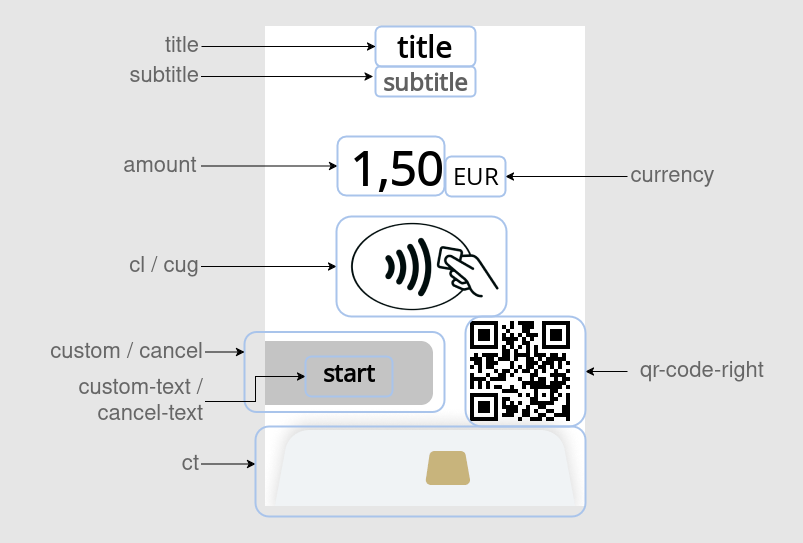

Polar

Example Template

Not Available
