Info

The info screen is a general purpose screen to display information to the user.

Screen Type Id : info

Properties

Key	Type	Description
title	utf-8 string	The primary title field on the screen. The field wraps when text overflows the width.
subtitle	utf-8 string	The subtitle field on the screen. The field wraps when text overflows the width.
offset	integer (0-420)	Controls the offset (in px) of the subtitle as measured from the top of the screen. If omitted a default of 235 is used.
qr	utf-8 string	String to be encoded in a QR code that is displayed at the top of the screen.
background	ascii string	Name of the asset to use as background image on UI. See assets for details. The asset must be a 320x480 px png file.
logo	boolean	Set true to display a logo at the top of the screen.

note

If both logo and qr is set. QR code will take precedence and the logo will not be shown.

Examples

Text 1

curl -X 'POST' ${CPS_UI_URL} \
  -H 'Authorization: CPS apikey="'${CPS_API_KEY}'"' \
  -H 'Content-Type: application/json' \
  -d '{
    "id": "my-info-screen",
    "type": "info",
    "properties": {
      "title": "Title",
      "subtitle": "Lorem ipsum dolor sit amet. Ut recusandae dolore est facere voluptatum qui omnis corporis vel expedita totam aut autem."
    }
  }'

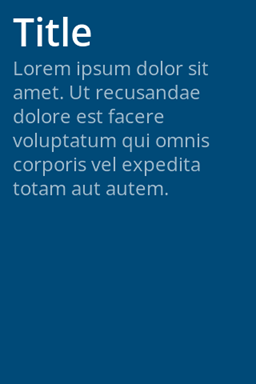

Text 2

curl -X 'POST' ${CPS_UI_URL} \
  -H 'Authorization: CPS apikey="'${CPS_API_KEY}'"' \
  -H 'Content-Type: application/json' \
  -d '{
    "id": "my-info-screen",
    "type": "info",
    "properties": {
      "title": "Title",
      "subtitle": "Lorem ipsum dolor sit amet. Ut recusandae dolore est facere voluptatum qui omnis corporis vel expedita totam aut autem.",
      "offset": 10
    }
  }'

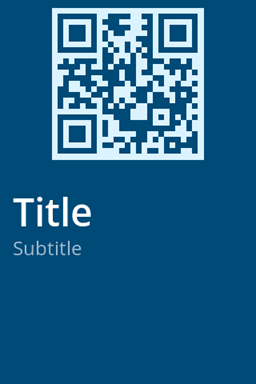

QR Code

curl -X 'POST' ${CPS_UI_URL} \
  -H 'Authorization: CPS apikey="'${CPS_API_KEY}'"' \
  -H 'Content-Type: application/json' \
  -d '{
    "id": "my-info-screen",
    "type": "info",
    "properties": {
      "title": "Title",
      "subtitle": "Subtitle",
      "qr": "www.example.com"
    }
  }'

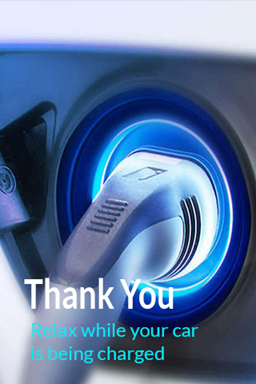

Background

curl -X 'POST' ${CPS_UI_URL} \
  -H 'Authorization: CPS apikey="'${CPS_API_KEY}'"' \
  -H 'Content-Type: application/json' \
  -d '{
    "id": "my-info-screen",
    "type": "info",
    "properties": {
      "background": "ev-background"
    }
  }'

warning

This example only works when the “ev-background” asset is loaded, which is not default.
